The Fronir GSW615G SWIR camera offers superior sensitivity and dynamic range paired with the flexibility of customized windowing and integration times. This InGaAs camera is very linear in the 0.9 to 1.7 µm sensing waveband, making it the perfect tool for high temperature thermal measurements and applications that require measuring through standard glass. The GSW615G offers control over settings such as integration time, while allowing you to synchronize and trigger to external events and devices.
Parameters
| Model Number | GSW615G |
| Sensor Type | GSW615G |
| Format | 640 x 512 |
| Spectral Response | 0.9μm ~ 1.7μm |
| Pixel Pitch | 15μm |
| Active Area | 9.6mm x 7.68mm |
| Quantum Efficiency | >70%（1.0 μm~ 1.6μm） |
| Frame Rate | 100 Hz |
| Integration Type | Snapshot |
| Integration Time | 100μs ~ 20 ms / Max 9ms at 100Hz |
| Pixel Operability | >99.5% |
| Full Well Capacity | 1.8M e- |
| ADC | 14bit |
| Analog video output | PAL, SMA interface |
| Digital Output | Gnet (Gigabit Network Port) |
| Software | Windows Apps/Windows SDK |
| Trigger | RS-422 / TTL（Optional） |
| Power Input | DC 12V ± 2V |
| Power Dissipation | <4W（TEC Off） |
| Dimensions (No Lens) | 65mm × 58mm × 65.5mm |
| Lens Mount | C-Mount |
| Operating Temp. | -20 ℃ ~ +50 ℃ / -40 ℃ ~ +70 ℃ (Optional) |
| Storage Temp. | -40 ℃ ~ +80 ℃ |
| On-board Image Processing | Single/two-point correction, bad pixel replacement, image denoising, image smoothing, controllable
shutter compensation |

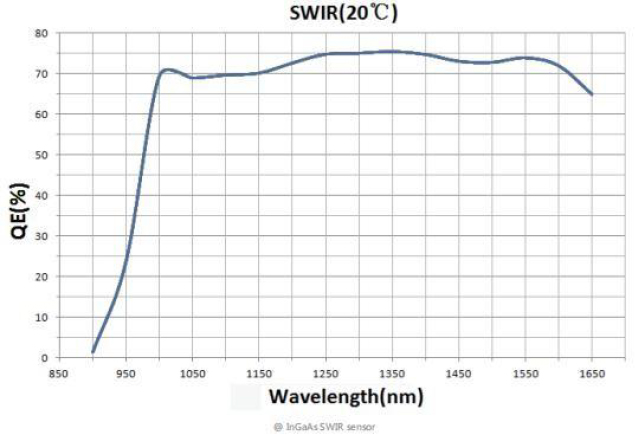

QE Curve

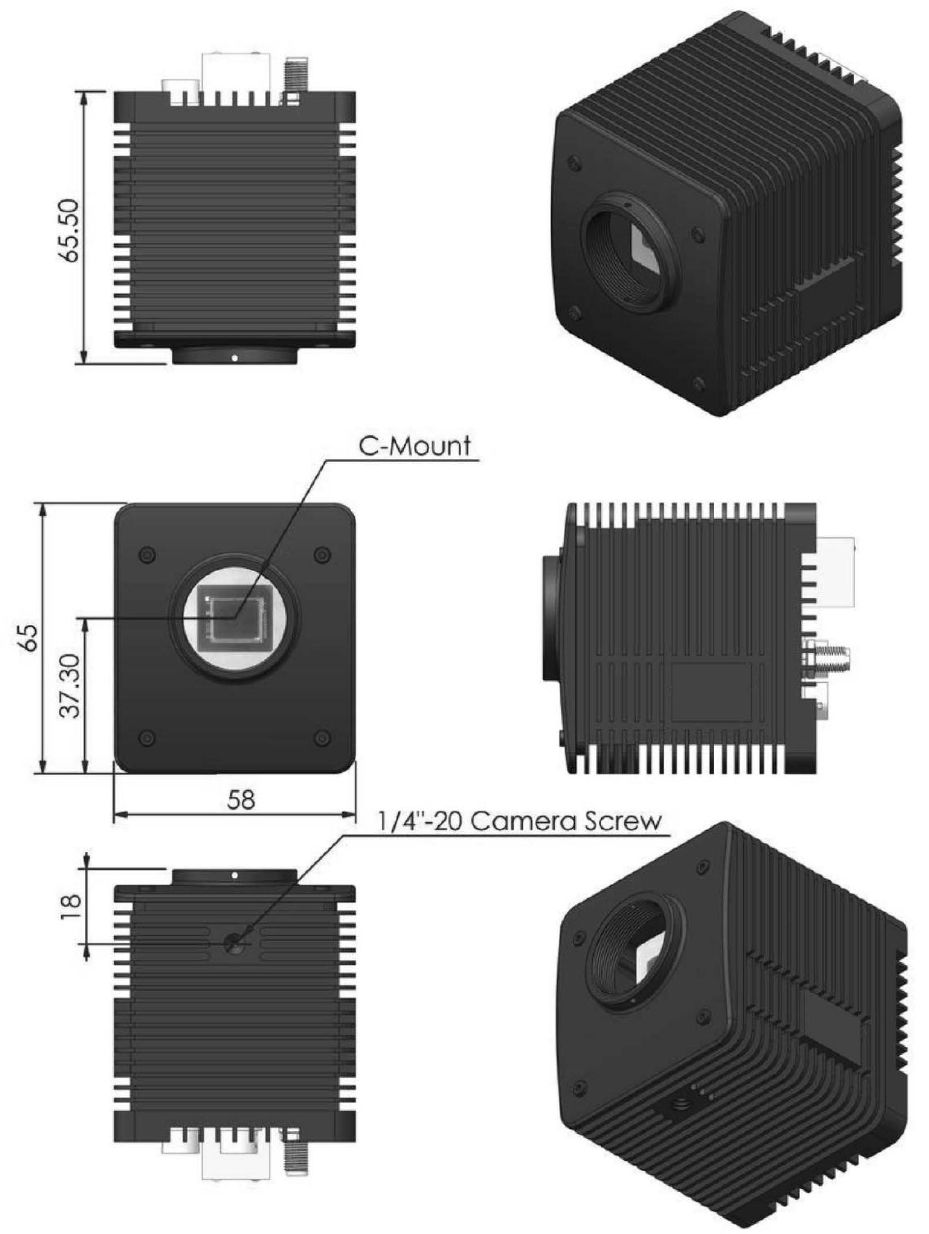

Camera Structure Diagram
