GST280 Series Gyro Stabilized Infrared Thermal Imaging System



Visible light and infrared thermal imaging

The 1920×1080 pixel high-definition visible light camera can provide users with clear images during the day, while the infrared thermal imaging is equipped with a 640×512 pixel detector, which is suitable for use in dark and complex weather conditions, providing clear thermal images. At the same time, the device is also equipped with a synchronized zoom 1km laser illuminator (equipped with GST280-T), which can work with a visible light camera to still obtain clear images even in dark environments, making it convenient for law enforcement and evidence collection at night. The GST280 series is compatible with various monitoring systems, and both power and signal can be directly connected to ordinary monitoring and security systems.



Waterproof performance

The GST280 casing has undergone strict waterproof design, which can be directly rinsed with water. Strict waterproof measures have also been taken for mechanical interfaces and cable joints. The GST280 has achieved IP66 protection and can be used 24/7 in complex climates such as salt mist, high humidity and cold.



Gyro stability

The gyro stabilization function enables users to obtain clear and stable images under complex ground or water conditions. The GST280 precision rotation platform adopts advanced gyroscope stabilization technology, which has a self-stabilizing function. When a vehicle or vessel shakes, the platform drives the load sphere to compensate in the opposite direction based on the gyroscope signal, so that the direction of the camera inside the sphere remains unchanged, and the stability can reach ± 0.1mrad, basically eliminating the effect of vehicle or vessel shaking on visual observation and achieving image stability.



Image tracking function (optional)

In tracking mode, the turntable can automatically rotate as the tracked target moves. Users can select targets to track in infrared or visible light images by simply pressing a button to enter tracking mode.



Technical parameter

Model	GST280	GST280-T

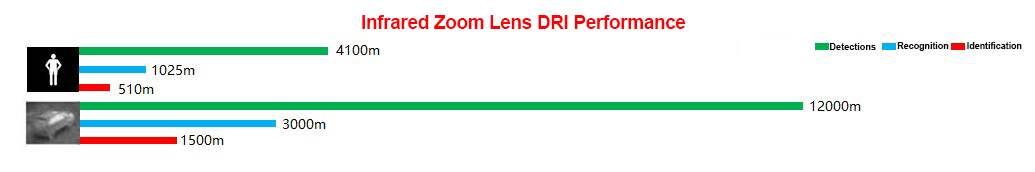

Infrared thermal imaging
Detector	Uncooled vanadium oxide, 640×512 pixels
Band	7.5-13.5μm
NETD	≤50mk @25℃
Frame rate	30Hz
Focal length	20mm –100mm continuous zoom
Field of view angle	21.7°x17.5° – 4.4°x3.5°
Visible light camera
Detector	1/2” CMOS
Pixel	1920×1080
Lens	6~300mm(50× optical zoom)	6~210mm(35× optical zoom)
Field of view angle (horizontal)	61.9° ~1.3°	61.9° ~1.9°
Minimum illumination	0.001Lu /F1.5(color)；0.0001Lux/F1.5 (black and white)
Focus mechanism	Automatic/Manual
Laser illuminator
Luminous wavelength		808±10nm
Effective distance		≥1000m
Lighting method		Electric synchronous zoom
Turntable parameters
Horizontal direction	360°continuous rotation
Pitching direction	-45° ~ +90°
Maximum angular velocity	200°/s
Maximum angular acceleration	150°/s2
Positioning accuracy	≤0.005°
Stable accuracy	≤0.1mrad
Preset	255
Physical characteristics
Power supply	24VDC
Power dissipation	60W
Protection level	IP66, TVS 4,000V lightning protection, voltage surge protection, in accordance with GB/T17626.5 6KV standard
Material	Aluminium alloy
Working temperature	-40℃ ~ +60℃
Overall dimensions	∅280mm× 430mm
Weight	＜19Kg
