The Fronir GSW615C SWIR camera offers superior sensitivity and dynamic range paired with the flexibility of customized windowing and integration times. This InGaAs camera is very linear in the 0.9 to 1.7 µm sensing waveband, making it the perfect tool for high temperature thermal measurements and applications that require measuring through standard glass. The GSW615C offers control over settings such as integration time, while allowing you to synchronize and trigger to external events and devices.
Parameters
| Model Type | GSW615C |
| Sensor Type | GSW615C |
| Format | 640 x 512 |
| Spectral Response | 0.9μm ~ 1.7μm |
| Pixel Pitch | 15μm |
| Active Area | 9.6mm x 7.68mm |
| Quantum Efficiency | ＞70 %（1.0 μm ~ 1.6μm） |
| Frame Rate | 100Hz |
| Integration Type | Snapshot |
| Integration Time | 100μs ~ 20 ms / Max 9ms at 100Hz |
| Pixel Operability | ＞99.5% |
| Full Well Capacity | 1.8M e- |
| ADC | 14bit |
| Analog video output | PAL, SMA interface |
| Digital Output | SDR 26 pin connector，Base on CameraLink |
| Software | Windows SDK |
| Trigger | Via CameraLink CC1（Delay＜ 1μs） |
| Mode Control | CameraLink SerTC，SerTFG. Baud: 115200 bps |
| Power Input | DC 12±2V |
| Power Dissipation | ＜3W （TEC off） |
| Dimensions (No Lens) | 61mm×62mm×59mm |
| Lens Mount | C-Mount |
| Operating Temp. | -20 ℃~ +50 ℃ / -40 ℃~ + 70 ℃ (optional) |
| Storage Temp. | -40 ℃ ~ + 80 ℃ |

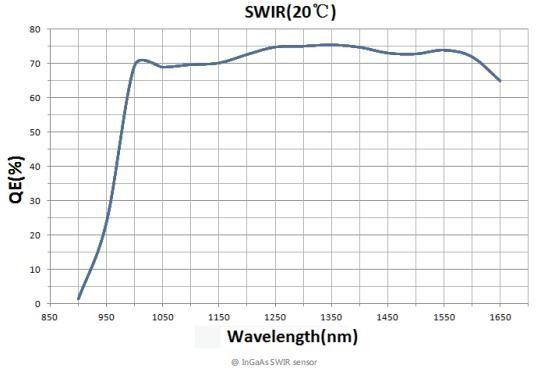

QE Curve

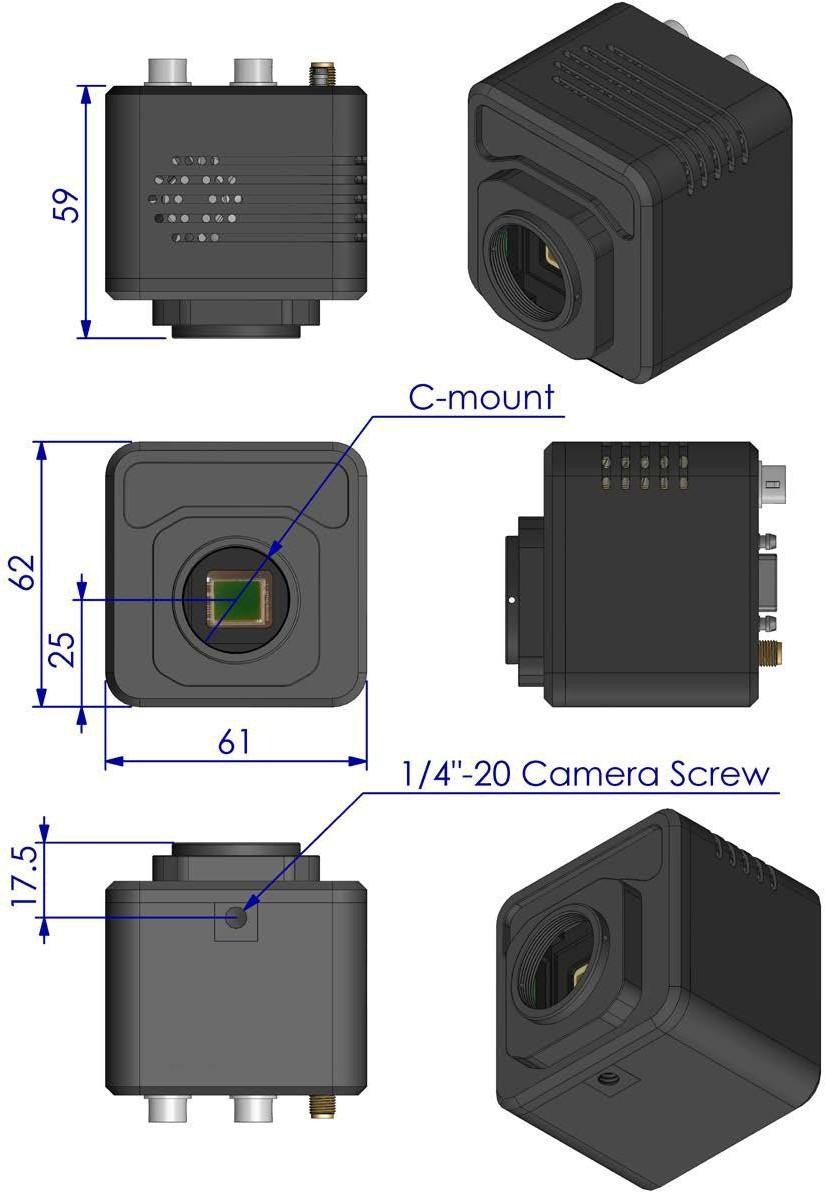

Camera Structure Diagram
